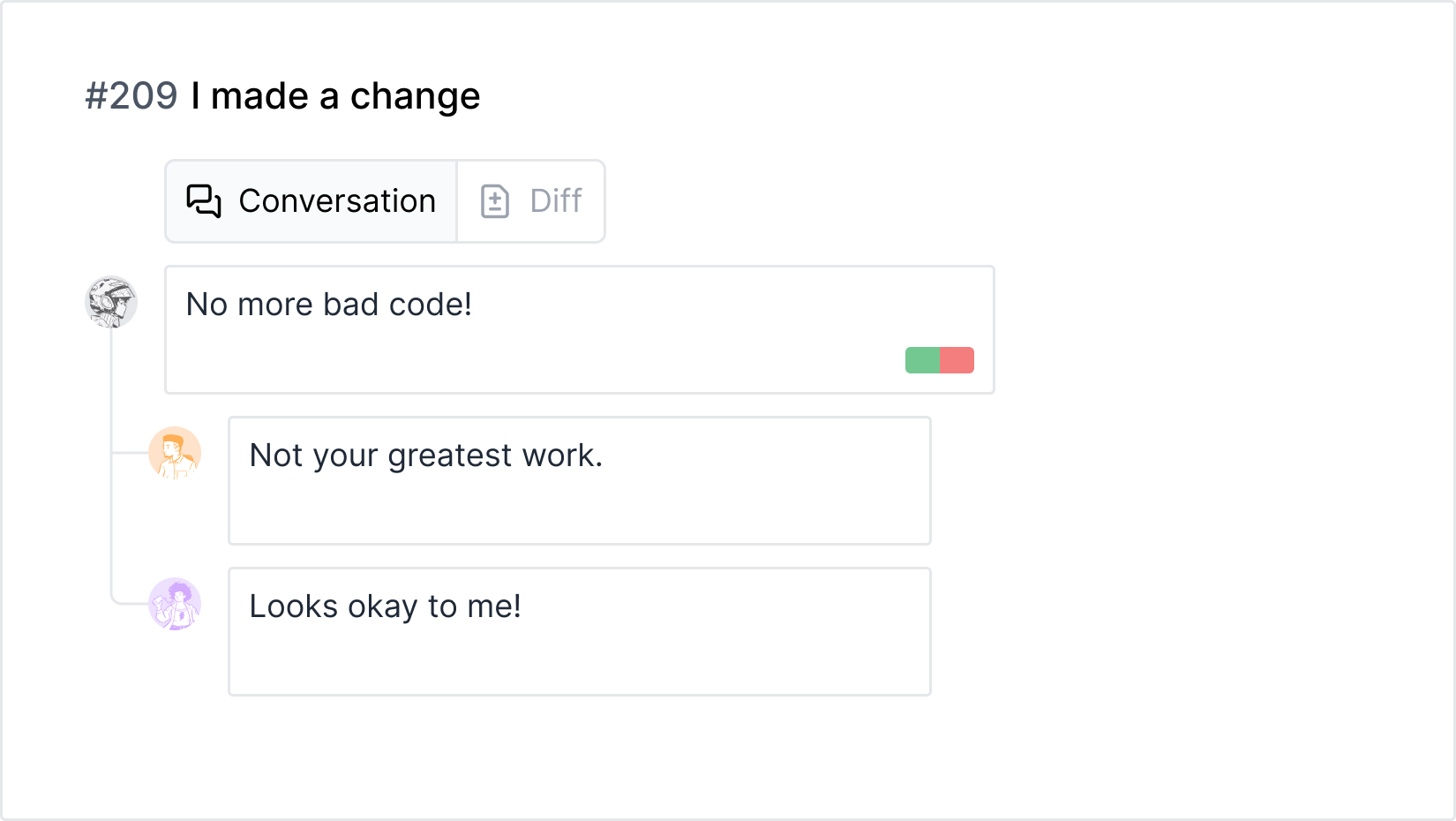

From ace615cfa2f91a6bdf4dc0aede12b71da34a5074 Mon Sep 17 00:00:00 2001 From: oppiliappan Date: Thu, 16 Apr 2026 16:26:45 +0100 Subject: [PATCH] wip: blog Signed-off-by: oppiliappan --- blog/posts/review.md | 177 +++++++++++++++++++++++++++++++++++++++++++ 1 file changed, 177 insertions(+) create mode 100644 blog/posts/review.md diff --git a/blog/posts/review.md b/blog/posts/review.md new file mode 100644 index 00000000..6a0c5e35 --- /dev/null +++ b/blog/posts/review.md @@ -0,0 +1,177 @@ +--- +atroot: true +template: +slug: review +title: revisiting the pull-request interface +subtitle: an attempt at fixing some gripes with the PR UI +date: 2026-04-28 +image: https://assets.tangled.network/blog/hidden-ref.png +authors: + - name: Akshay + email: akshay@tangled.sh + handle: oppi.li +draft: true +--- + +I have a few nits with the pull-request interface on +traditional forges: + +- the diff is not shown up front, it is typically on + separate tab +- comments are rendered inside the diff +- inline comments are attached to a single line + +To redesign the PR page for Tangled, I wanted to address +these nits. As with every interface, some folks may be +acclimatized to one design, and would rather not see it +changed. + +## diffs up front + +Code and review are equally important in code-review. It +would be criminal to put them on separate tabs, but most +forges do: + +
+ + + +

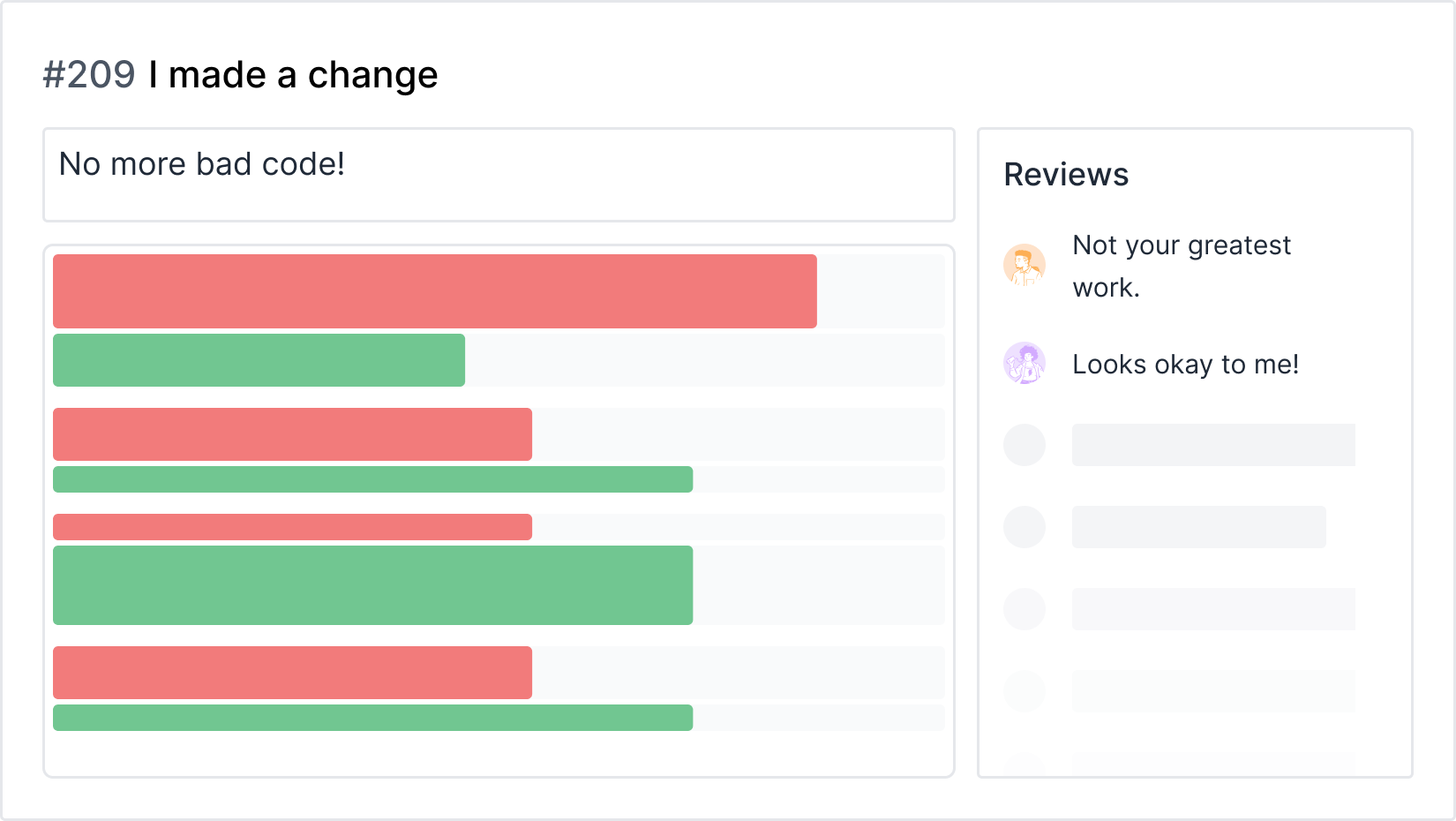

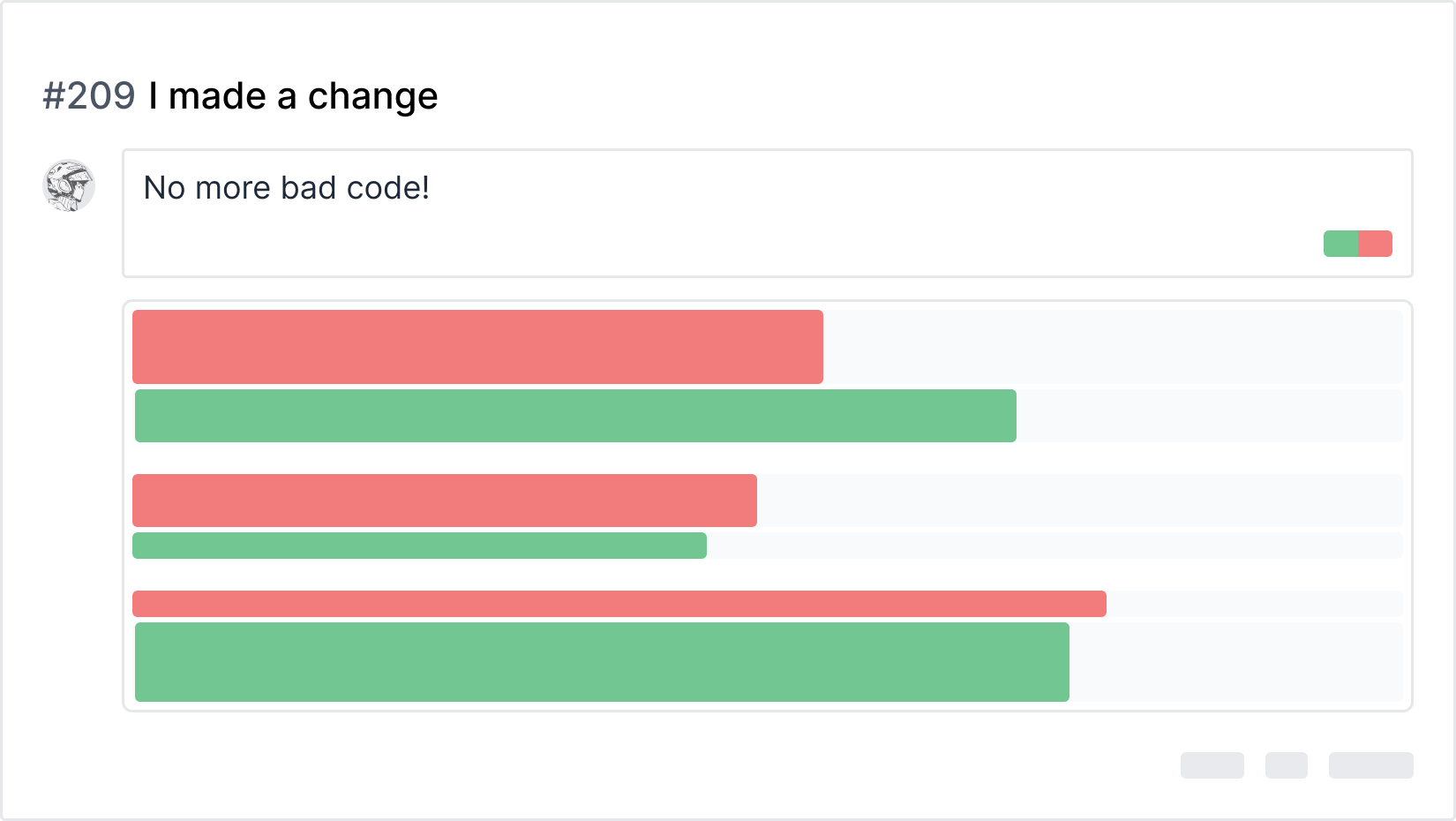

+ +Let's move the diff into the main view, evicting +conversations for now: + +
+ + + +

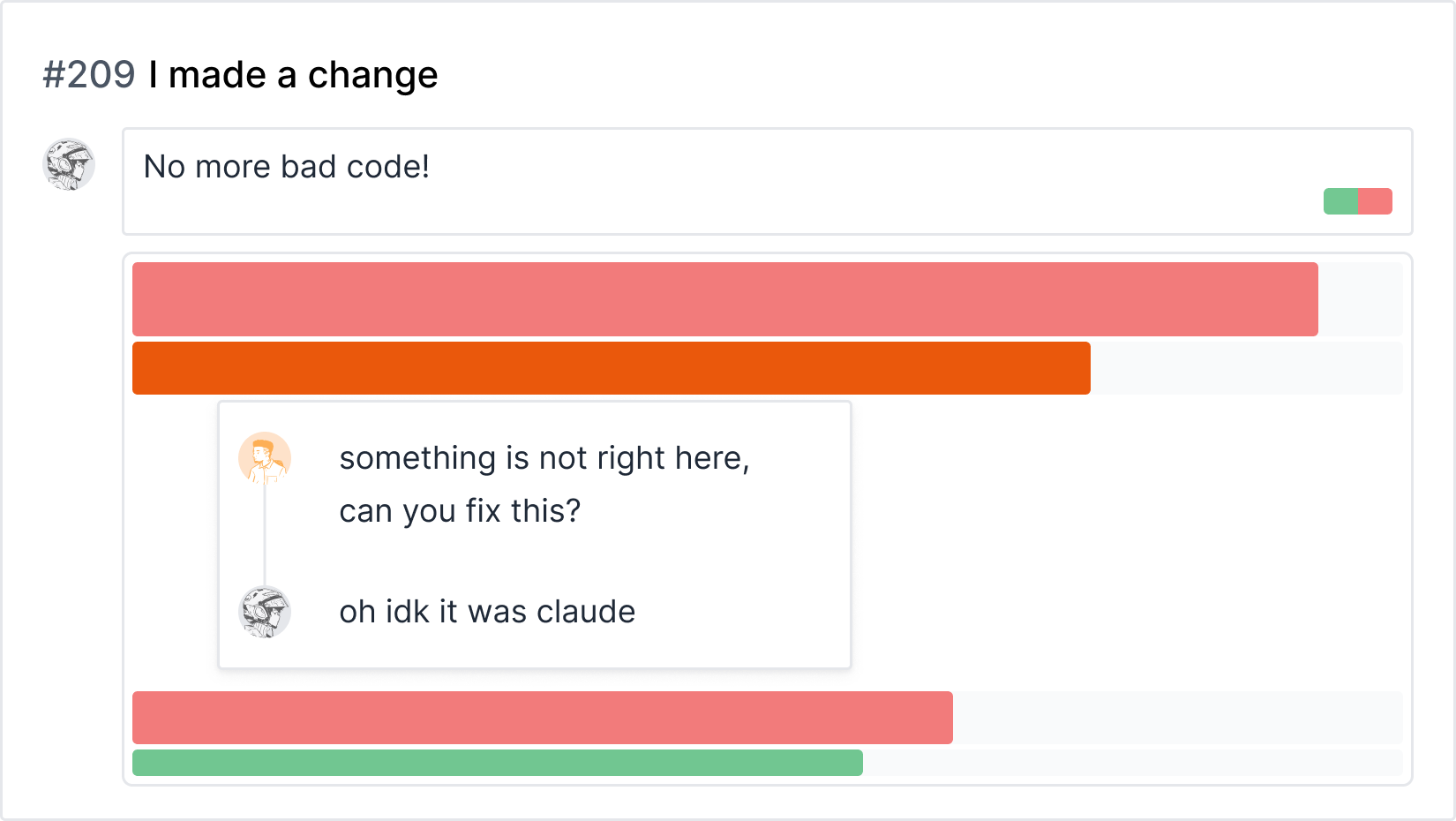

+ +To deal with the comments now, they *could* be overlaid on the +diff, like GitHub does... + +
+ + + +
+ +... but this makes the code hard to read. Review systems +like Figma and Google docs put the conversations off to the +right. This is especially nice with code review, because you +tend to want to jump around the diff as you author the +comment, or jump around the diff as you read a review: + +
+ + + +

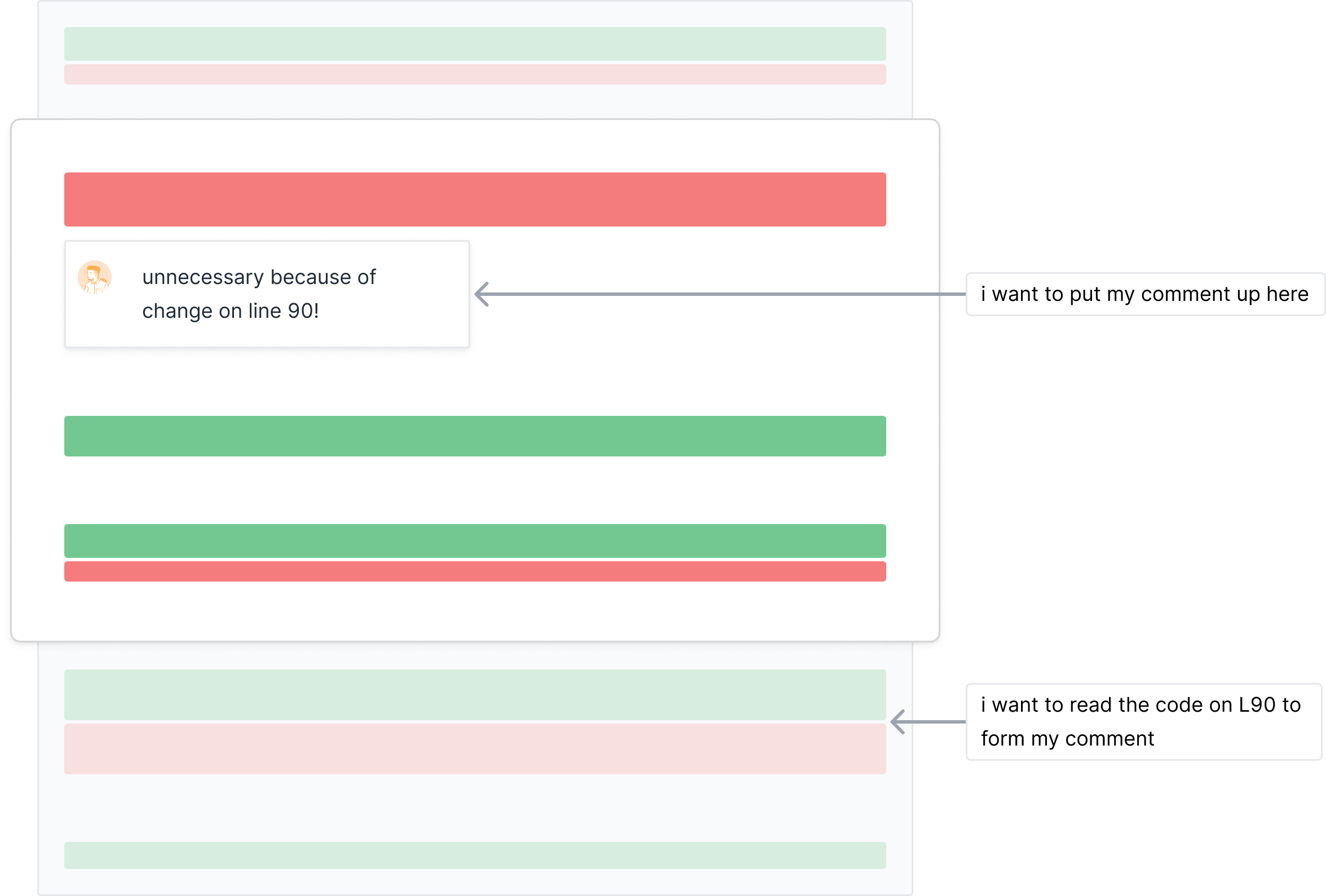

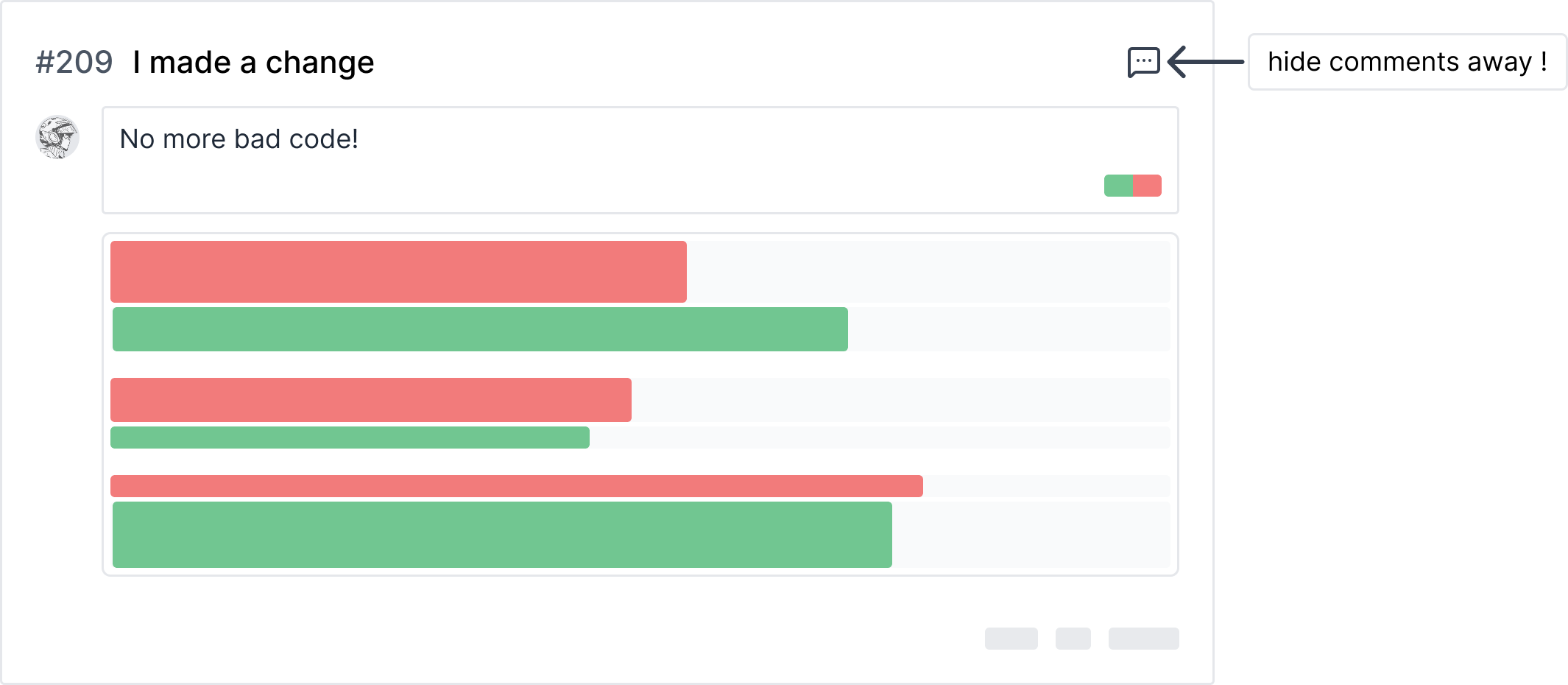

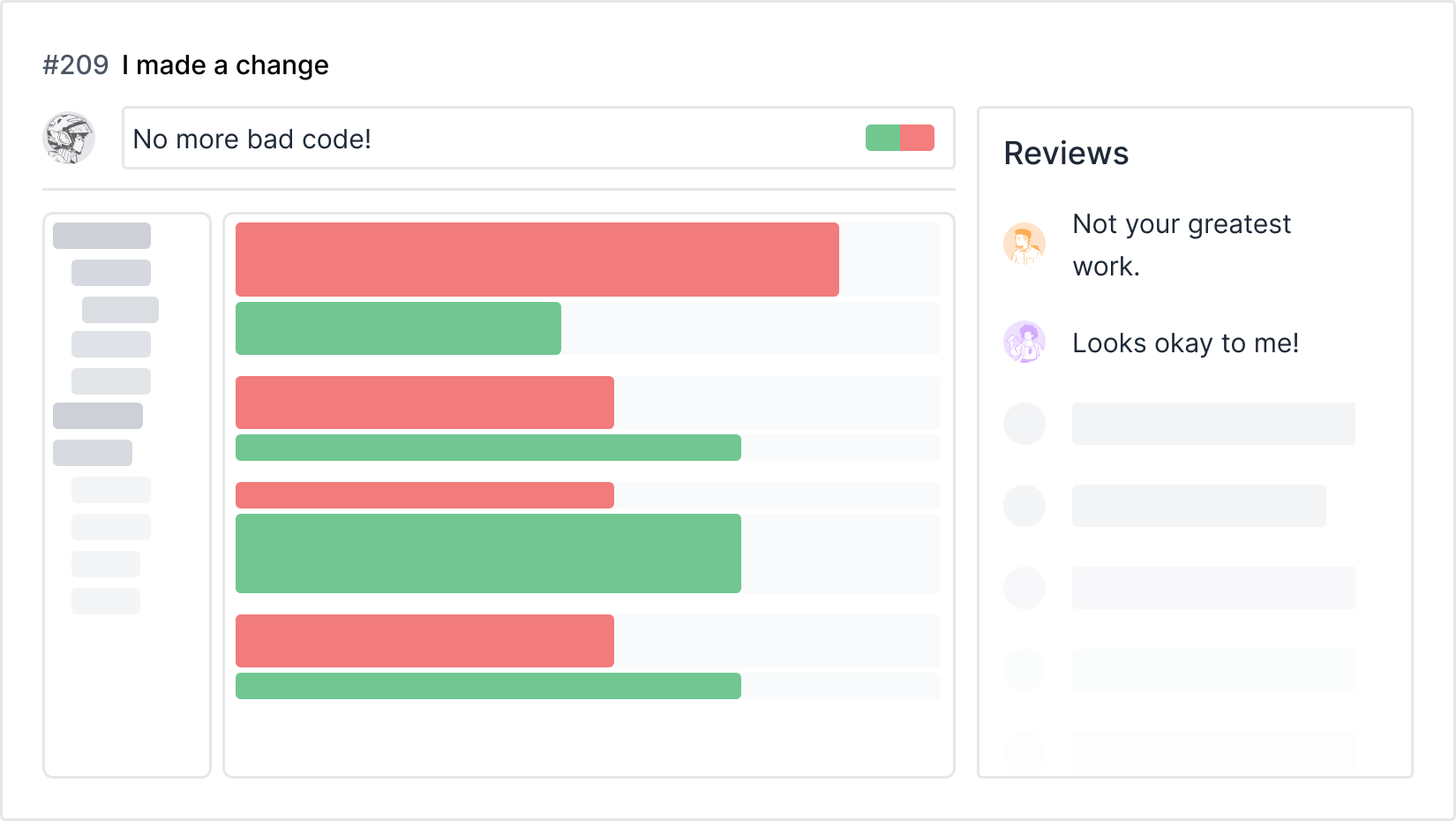

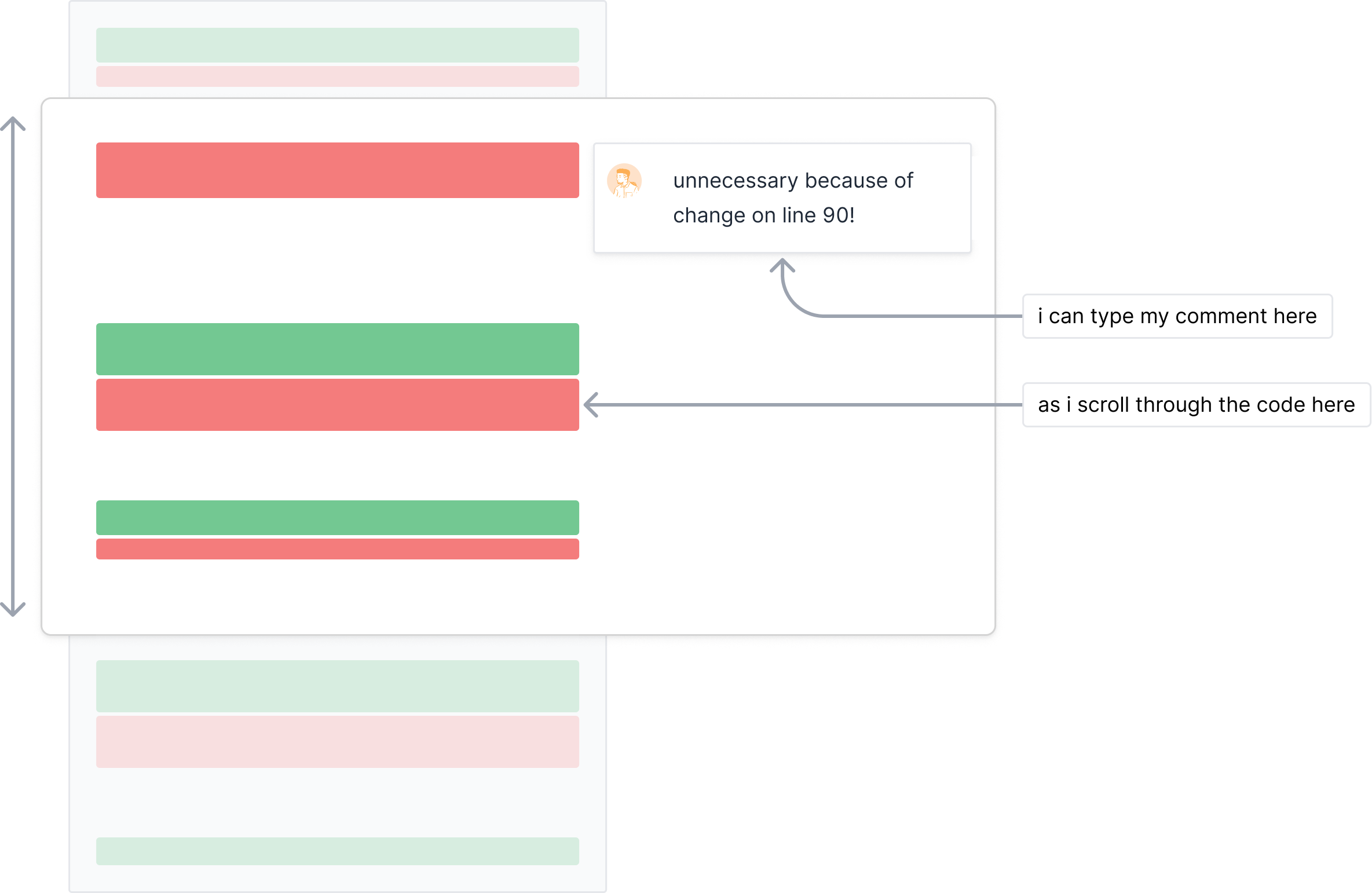

+ +Nowadays, forges include a filetree to the left, so lets add +that in as well: + +
+ + + +
